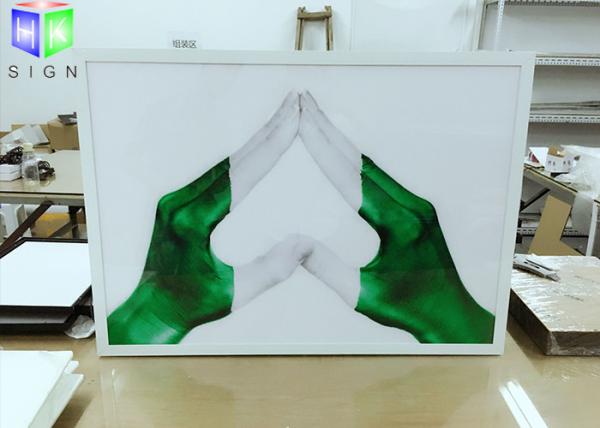

Aluminum Snap Frame Slim Led Light Box Panels Wall Mounted Advertising
Features & benefits
1) Adopt high-quality heavy-duty aluminum for frame. The frame is strengthening designed to resist shock and beautiful appearance;
2) Up and down ba fast opened, frame width 25mm & thin 15mm;
3) Easy Artwork change and installation;
4) Using digital electronic ballast and high quality illuminant;
5) Low power consumption: 2 to 10W (can save the 80% energy compare to the traditional light box);
6) illumination: High bright white LEDs;
7) Light output: 1500 to 2000 lux (maximum 8,000 lux);
8) The working power is 12V, it is safer;
9) Long lifespan with at least 50,000 hours;
10) Laser engraved LGP with even brightness and less aging for the Light box;
11) Colour: Silver Anodised as standard, or your choice of RAL colours;
12) With CE and RoHS marks;
13) Standard poster sizes A0, A1, A2, A3, A4, B1, B2 and custom sizes up to poster size of 1600mm x 3000mm;
Specifications
| Model | 1525 |
| Thickness | 15mm |
| Cover width | 25mm |
| Size | what the size you need , the size can be customized |
| standard size | A0(1229mmX881mm)A1(881mmX634mm)A2(634mmX460mm) A3(460mmX337mm)A4(337mmX250mm) |
| Color | Black/Silver, or as you need |
| Frame | Open with snap frame, easy change the poster |
| Material | optimal aluminum alloy frame |
| Newest optical import LGP |
| AAA degree of acrylic sheet |
| high quality reflective sheet |
| Led source | word top class high brightness LED light source |
| Technology | world's leading 3D laser engraving technology |
| Power supply | with a power adaptor DC12V ,can use for AC100-240V, and have local plug |
| Installation | wall mounted |
Application
interior decoration, chain operation store, company signboard, commercial centre, supermarket, airport, station, subway, bank, bus station, large exhibition project etc.
standard size to reference(size can be customized)
| Model | Frame size (mm) | Picture Size (mm) | Visible Size (mm) | Thickness | Weight (KG) |
| A0 | 1229*881 | 1189*841 | 1179*831 | Thickness 15mm
Cover Width 25mm | 15 |
| A1 | 881*634 | 841*594 | 831*584 | 8 |
| A2 | 634*460 | 594*420 | 584*410 | 5 |
| A3 | 460*337 | 420*297 | 410*287 | 3.5 |
| A4 | 337*250 | 297*210 | 287*200 | 2.5 |
3D laser engraving
Application show
